Measurement of Glass Quality Appearance

  • Curved screen technology --> Compactness of the equipment

  • Better distribution of reflected fringes --> uniform sensitivity

  • Absolute measurement of 3D Shape and Curvature

  • Same hardware for 2 different applications (OptiGlass & OptiFrag)

  • Automated calibration for absolute measurement with optimal signal-to-noise ratio

  • Fast and reliable measurement

  • Compliant with VW-PV 8203 specifications

OptiGlass: Measurement Result, based on reflected pattern displaye don the glass' surface
OptiGlass: Surface Appearance Quality Control Logo

OptiGlass is designed to measure the reflective optical properties in automotive glass which directly impact the perceived appearance (read aesthetic) quality.

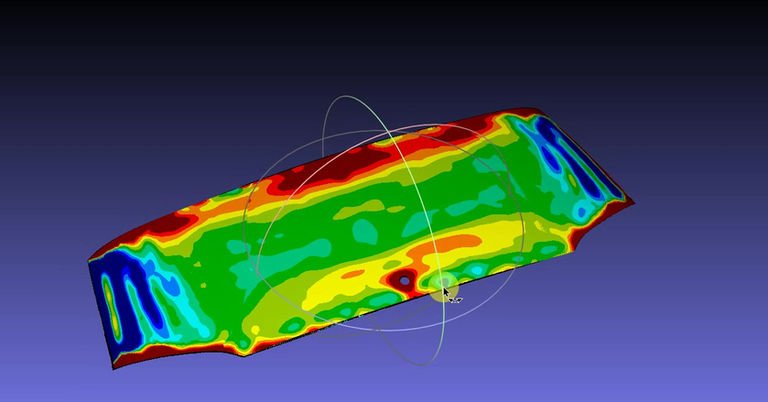

The system provide reliable and objective judgement of the reflected distortion based on absolute 3D Deflectrometry for 3D shape of the glass and absolute curvature results with highest accuracy.

AH
AH

press to zoom
AV
AV

press to zoom
Acquisition
Acquisition

press to zoom
AH
AH

press to zoom
1/3

A further advantage is the compactness design based on our own curved screen LED technology.



The solution can be provided as a standalone equipment or as a dual station that integrate both the OptiGlass and OptiFrag technologies into one common Audit Station generating cost-savings for client by regrouping two distinct and complementary solutions into a single hardware equipment.

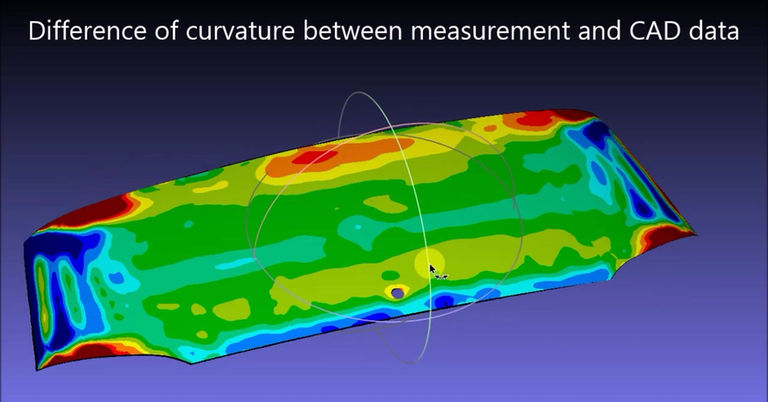

Dif
Dif

press to zoom

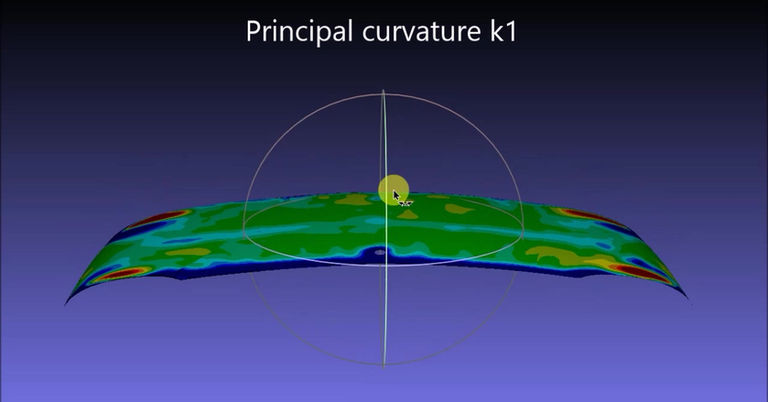

K2
K2

press to zoom
BF
BF

press to zoom
Dif
Dif

press to zoom
1/9

​High performance in glass Appearance
